How To Create a Downloadable Web API

Introduction

In this article we will describe how to create a downloadable Web API. Since we know that an API is a framework that can help to create HTTP services to provide the responses of the client request. HTTP services reaches a broad range of clients and also includes the browsers and mobile services. Here we describe the calling of the API application from the browser.

Step 1

Create the Blank Solution

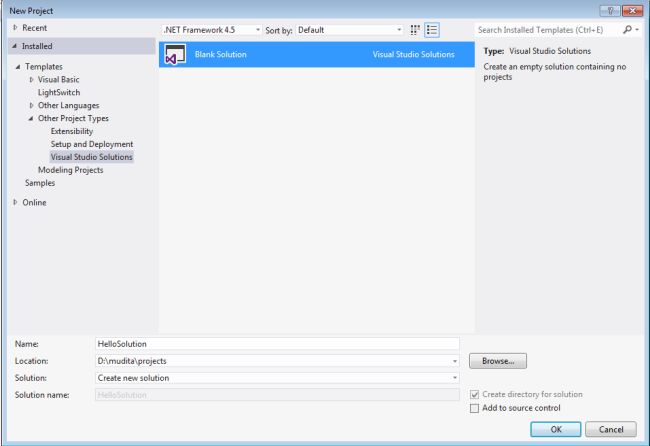

Open Visual Studio 2012
Select "File" -> "New" -> "Project...".
On the template window select "Installed" > "Template" > "Other Project Type" > "Visual Studio Solution".
Now choose "Blank Solution" and change the name of this solution to "HelloSolution".
Now click on the "OK" button.

Step 2

Create ASP. Net MVC Web API application

After creating the blank solution we can now add an ASP.Net Web API project.

Right-click on the solution "HelloSolution" in the Solution Explorer.
Select "Add" > "New Project..."
In the Installed Templates expand the "Visual C#" node and select "ASP. Net MVC 4 Application".
Click on "OK" button.
Select the Web API from the New ASP.Net Web API.

Solution Explorer image

Step 3

Add the Controller

Now use the following procedure to create the Controller:

Right-click on the Controller Folder in the Solution Explorer. Select "Add" > "Controller".
In the controller window change the name to "helloController".
And in the template select Empty API controller.
Click on the "Add" button.

Step 4

Write the following code in the helloController.cs:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Net.Http;

using System.Web.Http;

namespace helloAPI.Controllers

{

public class helloController : ApiController

{

public string Get()

{

return "Mudita Rathore";

}

public string Get(string Id)

{

return "Mudita " + Id;

}

Step 5

Now to call the Web API from the browser.

For calling the Web API, first we debug the code, then the result will look like this:

Now we access the URL "http://localhost:48909/api/hello".

Now we click on "Open" and select the browser to access the Web API.

Output

The result will look like this in the Mozilla Firebox browser:

Calling the ASP.Net Web API With jQuery and JavaScript

Introduction

In this article we will use jQuery and JavaScript for calling the Web API. We know that the ASP. Net Web API is a framework for creating Web APIs of the .NET Framework. In this article we will use the ASP. Net Web API to create a Web API that returns a list of items.
Now we will provide the procedure for creating the Web API.

Step 1

First we create the Web API project as in the following:

Open Visual Studio 2012 and select "File" -> "New" -> "Project...".
In the Template Window select Visual C# >Web and then select "ASP. Net MVC 4 Web Application". Change the name of this to "ExampleAPI" and click on the "OK" button.

In the New ASP. Net MVC 4 project window select "Web API" and click the "OK" button.

Step 2

Now we Add a Model

In the ASP. Net Web API the Model can be serialized automatically in Java Script Object Notation (JSON) and Extensible Markup Language (XML) format. We can use the model to represent the data in our application.
Now we will describe how to create the model in the application.

In the Solution Explorer right-click on the "Model" folder
From the context menu select "Add" and select the class

Step 3

We change the class name to "Item" and add this code to the class:using System;using System.Collections.Generic;using System.Linq;using System.Web;namespace ExampleAPI.Models
{
    public class Item    {
        public int Id { get; set; }
        public string name { get; set; }
        public string Type { get; set; }
        public decimal cost { get; set; }
    }}

Step 4

Add the Controller

The Controller handles the HTTP requests. There are two types of controllers; they are:

HomeController: used for serving the HTML pages to the WebSite. It cannot have direct interaction with the Web API.
ValuesController: works as an example of the Web API.

Use the following to add the controller:

In the Solution Explorer right-click on the "Controller" folder.
Select "Add and Select Controller".
Change the name of the controller to "Items".
In the Template select "Empty API Controller".

Now add the following code to the Controller.

namespace ExampleAPI.Controllers

{

using System;

using System.Collections.Generic;

using System.Linq;

using System.Net;

using System.Net.Http;

using System.Web.Http;

using ExampleAPI.Models;

public class ItemsController : ApiController

{

Item[] items = new Item[]

{

new Item{Id = 1,name="Apple", Type="Fruit",cost=100},

new Item{Id = 2,name="Tomato",Type="vasitable",cost=50},

new Item {Id = 3,name="T-Shirt",Type="cloths",cost=500}

};

public IEnumerable<Item> GetAllItems()

{

return items;

}

public Item GetItemById(int id)

{

var item = items.FirstOrDefault((I) => I.Id == id);

if (item == null)

{

throw new HttpResponseException(HttpStatusCode.NotFound);

}

return item;

}

public IEnumerable<Item>GetItemsByType(string type)

{

return items.Where(

(I) => string.Equals(I.Type, type,

StringComparison.OrdinalIgnoreCase));

}

Step5

For calling the Web API with jQuery an JavaScript
In the Solution Explorer, expand the Home Folder and double-click on the Index.cshtml.

And write this code.

<!DOCTYPE html>

<head>

type="text/javascript"></script>

$(document).ready(function ()

{

$.getJSON("api/items/",

function (Data) {

$.each(Data, function (key, val)

{

var str = val.name + ': $' + val.cost;

$('

, { text: str })

.appendTo($('#items'));

});

function show() {

var Id = $('#itId').val();

$.getJSON("api/items/" + Id,

function (Data) {

var str = Data.name + ': $' + Data.cost;

$('#items').text(str);

})

.fail(

function (jqXHR, textStatus, err) {

$('#items').text('Error: ' + err);

});

}

</script>

</head>

<div>

<h1>Showing All Items </h1>

</div>

<div>

</div>

</body>

</html>

Result

Search the Item Through Id
